EXC-5700A U.S. Dollar Banknote Detector

◆ Product features

<Equipped with Advanced Counterfeit Detection Technology>

By analyzing data from special light, visible light, ultraviolet, infrared, and MF sensors using our proprietary detection algorithm, the device provides top-tier counterfeit detection unmatched by competitors.

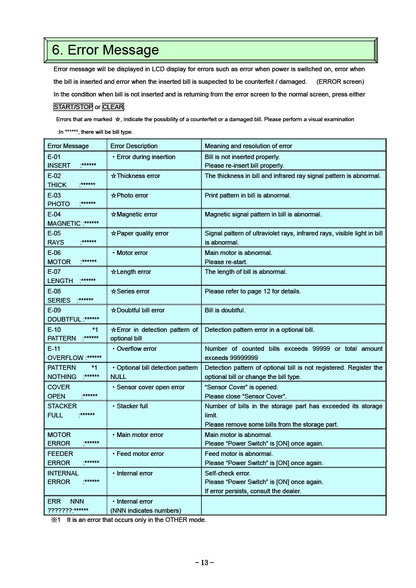

If a note is identified as suspicious, a warning buzzer will sound, and an error message will be displayed on the LCD screen.

<Compact Design Suitable for Small Spaces>

The EXC-5700A features a compact body measuring 134mm (W) × 240mm (D) × 128mm (H),
making it easy to install even in limited spaces such as counters and reception areas.

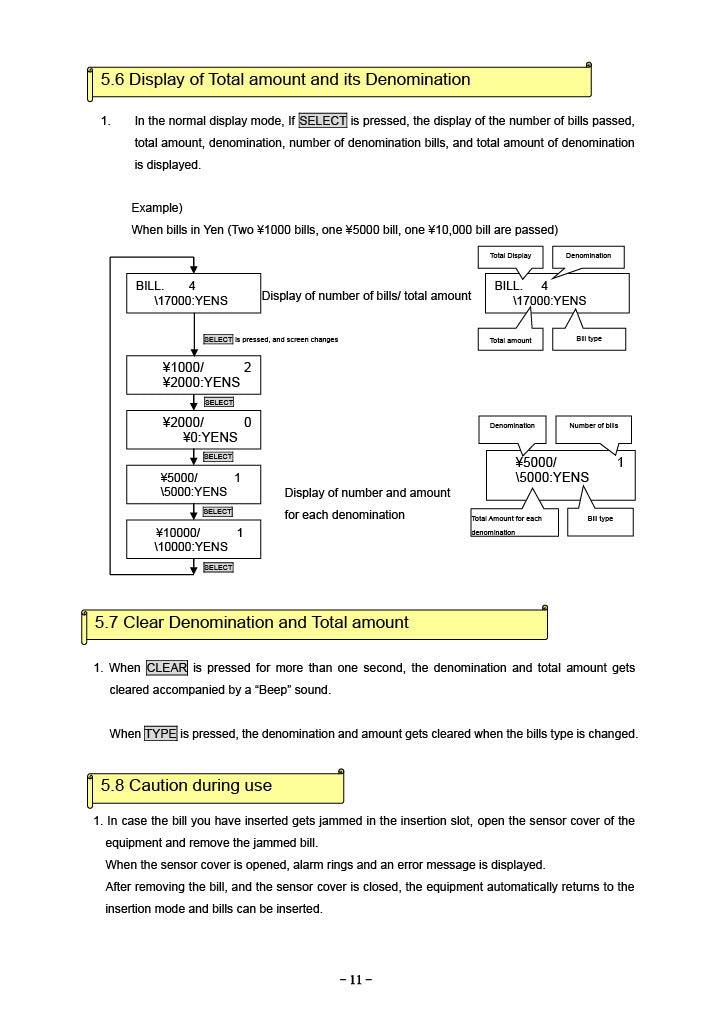

<Displays Total Count and Amount, Including Breakdown by Denomination>

Banknotes identified as genuine are displayed on the LCD screen with their total count and total amount.
With a simple switch operation, the device can also display the count and total amount by denomination, allowing users to easily verify the number and value of authenticated notes.

<Upgradeable for Future Compatibility>

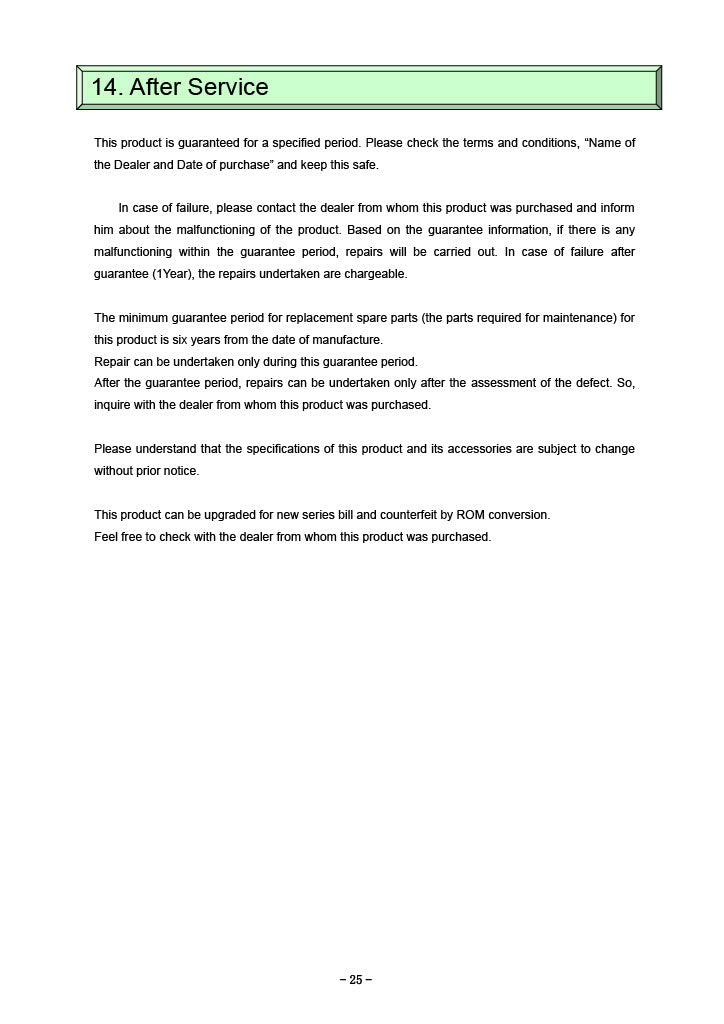

In the event of new banknote releases or the discovery of new counterfeit notes, the system can be updated through a version upgrade.
(Additional fees may apply for upgrades.)

<Other Features>

●Worldwide Voltage Support : AC 85V–264V

●Detection Speed : Approx. 0.7 seconds per note

<Example Applications>

●Financial institutions, Foreign currency exchange counters, Currency handling businesses, Hotels, Lodging facilities

◆ Specifications

Supported	U.S. Dollar
Detection Method	Combined detection using special light, visible light, infrared, magnetic sensors, light intensity correction, and MF sensors
Detection Speed	Approx. 0.7 seconds per note

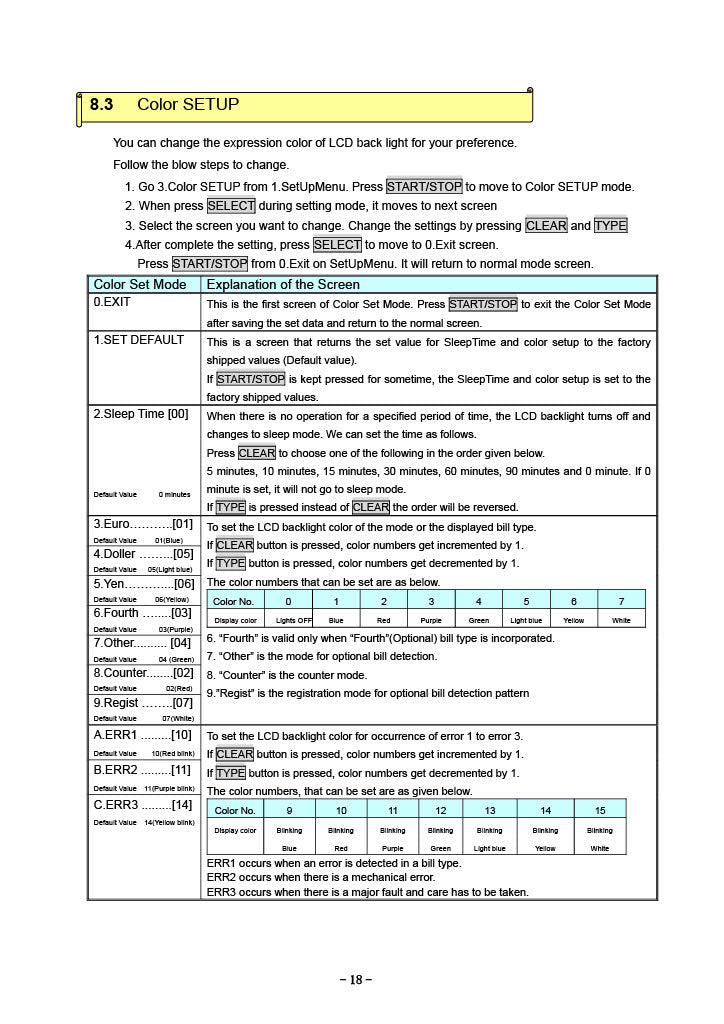

Display	LCD displays total amount, total number of notes, denomination-wise total and count, and error messages for suspected notes

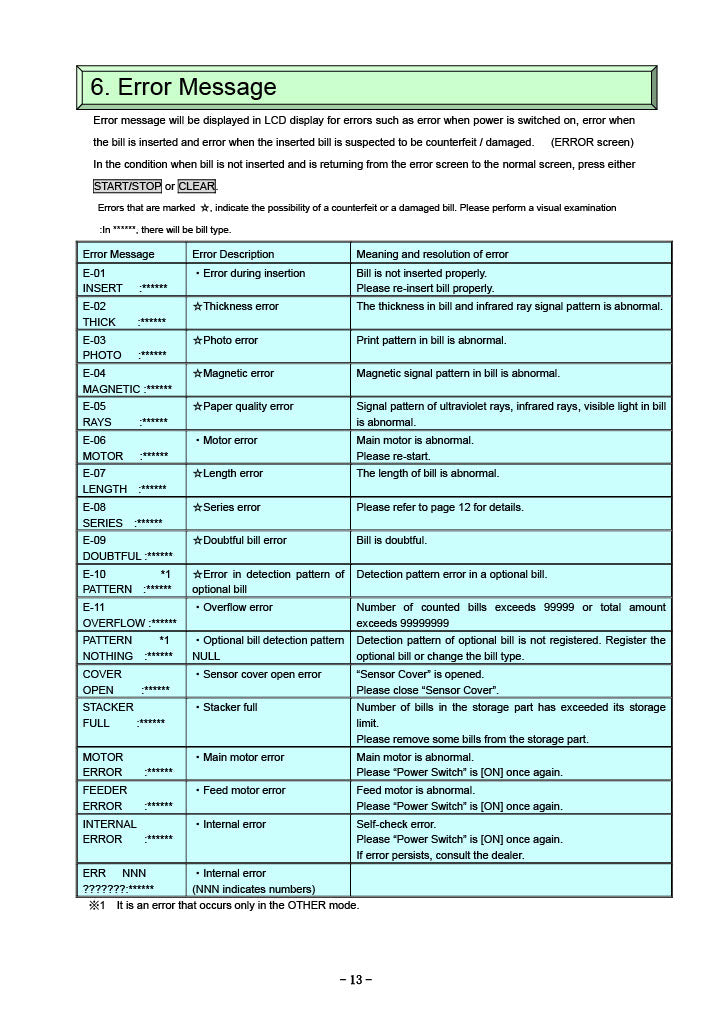

Suspect Note Alerts	Warning buzzer, red [ERR] lamp, and error message on the display
UP/DOWN Buttons	Used to switch between display screens

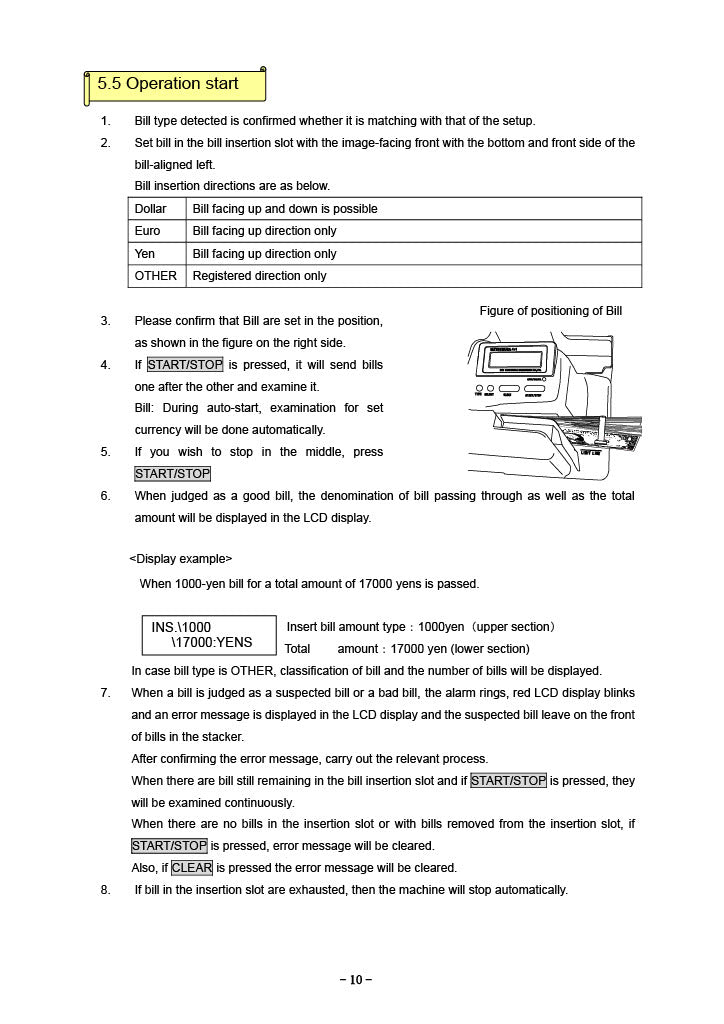

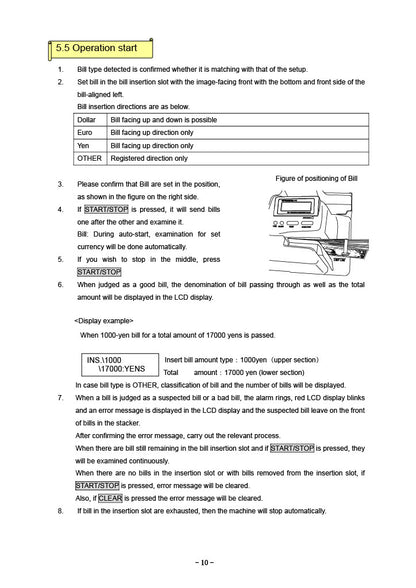

Insertion Direction	Two directions with the portrait side facing up
Storage	Notes are stored in the rear stacker of the device
Operating Environment	+5°C to +45°C / 30–80% RH (non-condensing)
Power Supply	AC85V–264V, 45–65Hz (worldwide compatible)
Power Consumption	Max 20W / Standby approx. 5W
Dimensions	134mm (W) × 240mm (D) × 128mm (H) (excluding protrusions)
Dimensions	Approx. 2kg (excluding AC adapter)

・The EXC-5700A features an ultra-precise defection algorithm developed by MATSUMURA, successtully identifying even the most sophisticated counterfelt U.S. banknotes.

・This device marks first breakthrough in detecting notes like the "Super K" that have threatened national goverments globally.
