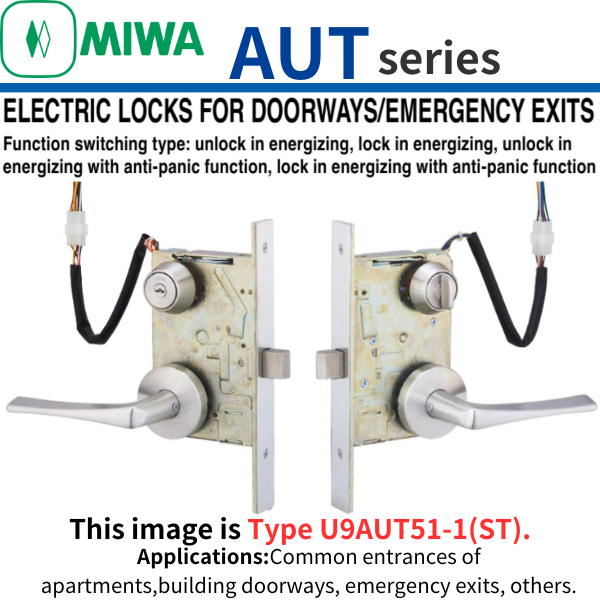

MIWA LOCK U9AUT (AUTA,AUR,AURA) -1 Electric locks for Doorways/emergency exits

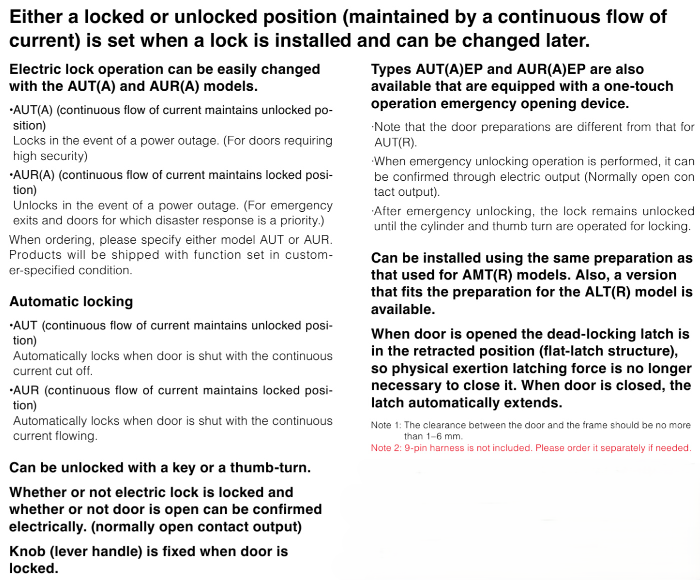

Either a locked or unlocked position (maintained by a continuous flow of current) is set when a lock is installed and can be changed later.
◆ Variation
●Cylinder : U9
●Model : AUT-1

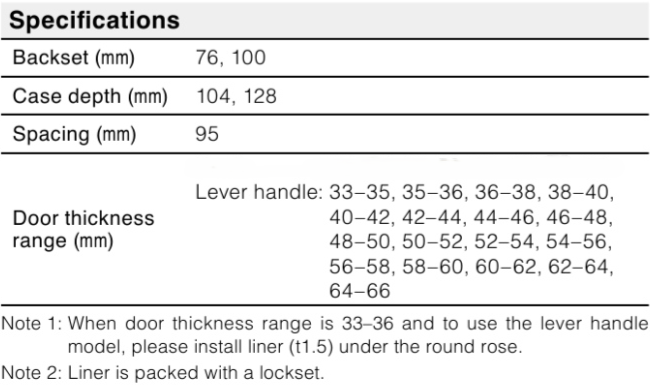

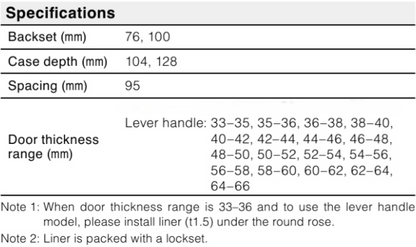

●Backset : 76mm, 100mm
●Door Thickness : 34~36mm, 36~38mm, 38~40mm, 40~42mm
You can select the Backset and Door Thickness from the variations.
Please refer to the product images for details.
◆ Product features
<Electric lock operation can be easily changed with the AUT(A) models.>
•AUT(A) (continuous flow of current maintains unlocked po-sition) Locks in the event of a power outage. (For doors requiring high security)
<Automatic locking>
•AUT (continuous flow of current maintains unlocked posi-tion) Automatically locks when door is shut with the continuous current cut off.

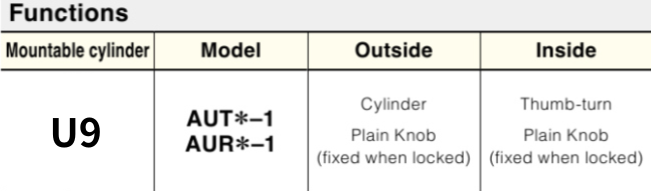

<Can be unlocked with a key or a thumb-turn.>

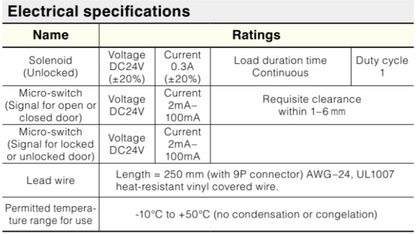

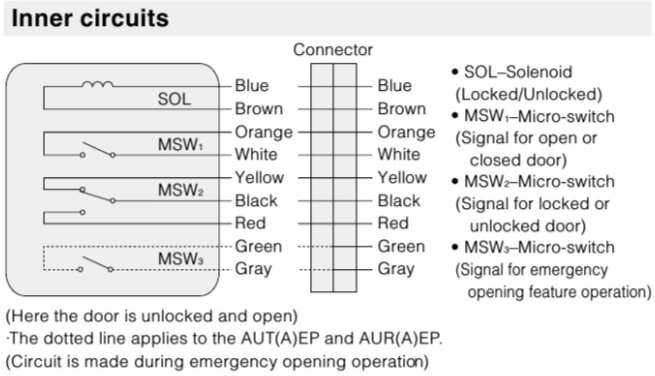

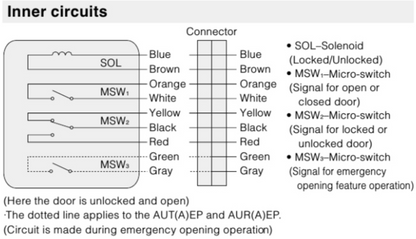

Whether or not electric lock is locked and whether or not door is open can be confirmed electrically. (normally open contact output)

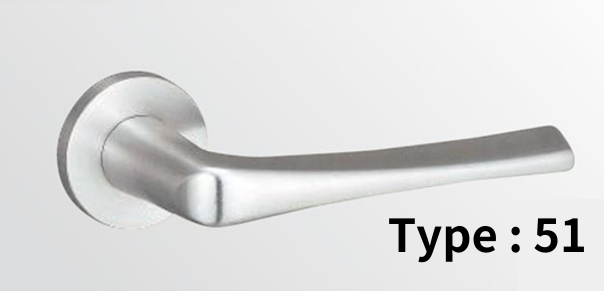

Knob (lever handle) is fixed when door is locked.

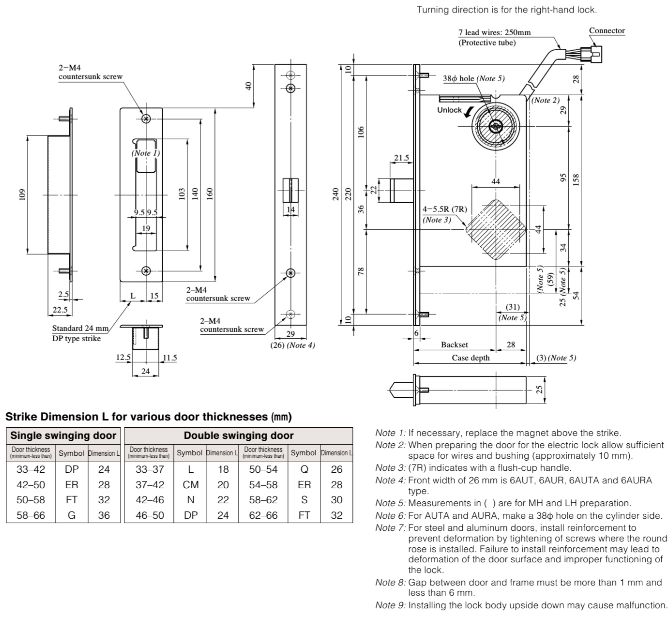

<Can be installed using the same preparation as that used for AMT(R) models. Also, a version that fits the preparation for the ALT(R) model is available.>
When door is opened the dead-locking latch is in the retracted position (flat-latch structure), so physical exertion latching force is no longer necessary to close it. When door is closed, the latch automatically extends.

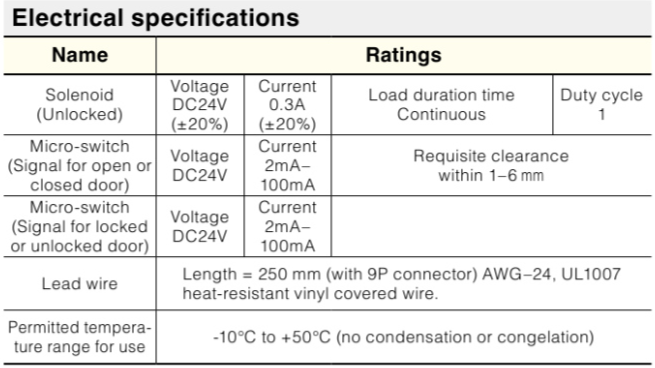

Note1 : The clearance between the door and the frame should be no more than 1–6 mm. Note2 : 9-pin harness is not included.
