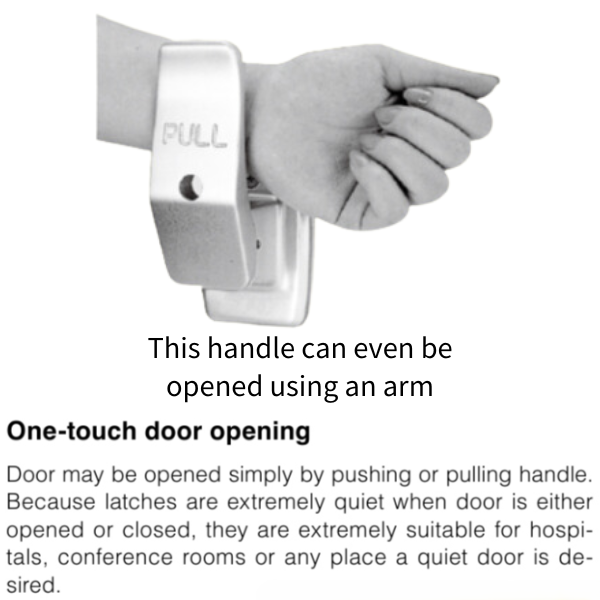

  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks Instructions

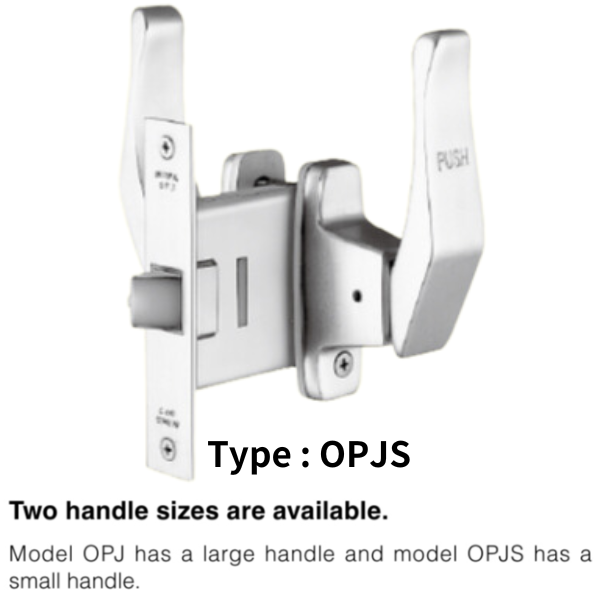

  • MIWA MWIALOCK OPJ series OPJS Type MUFFLED ONE-TOUCH LATCHES Push-pull locks

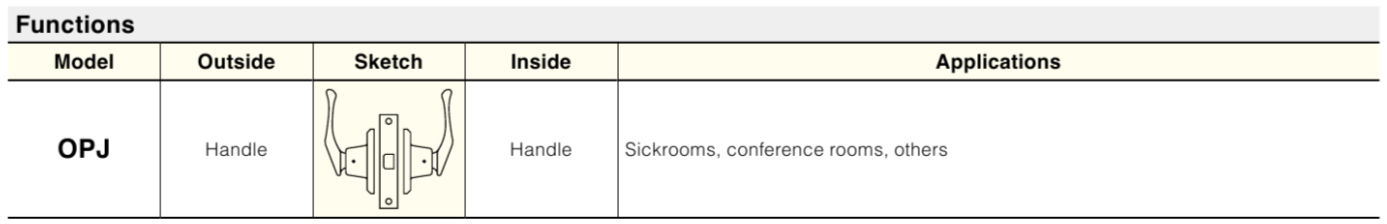

  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks Functions
  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks Materials and Finishes
  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks Specifications

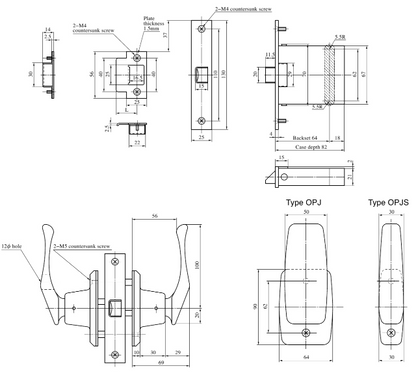

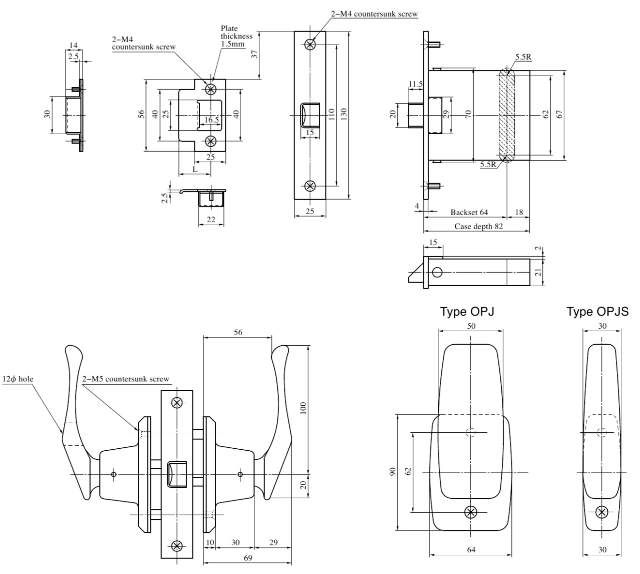

  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks External cutout view of the product
  • MIWA MWIALOCK OPJ series MUFFLED ONE-TOUCH LATCHES Push-pull locks Strike Dimension L for various door thickneses(mm)
1 8

MIWA LOCK

MIWA,MIWALOCK OPJ SERIES MUFFLED ONE-TOUCH LATCHES Push-pull locks

MIWA,MIWALOCK OPJ SERIES MUFFLED ONE-TOUCH LATCHES Push-pull locks

¥40,200
¥40,200
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Opening door and thickness
  • The image will change when you select a type.

MIWA,MIWALOCK OPJ SERIES MUFFLED ONE-TOUCH LATCHES Push-pull locks

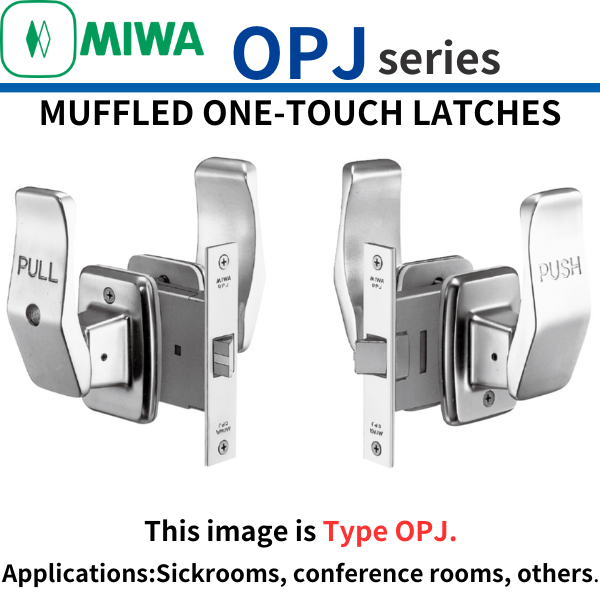

※The main photo shows the OPJ（Large handle）.

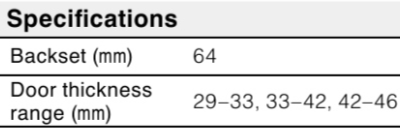

  • Specifications

Model  Backset (mm) Door Door thickness range (mm)
OPJ（Large handle） 64 Single / Double swing door 29-33, 33-42, 42-46
OPJS（Small handle） 64 Single / Double swing door 29-33, 33-42, 42-46

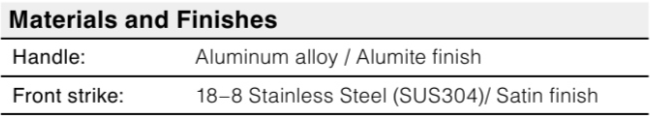

  • Materials and Finishes

Materials Finishes
Handle Aluminum alloy Alumite finish
Front Strike 18-8 Stainless Steel (SUS304) Satin Finish

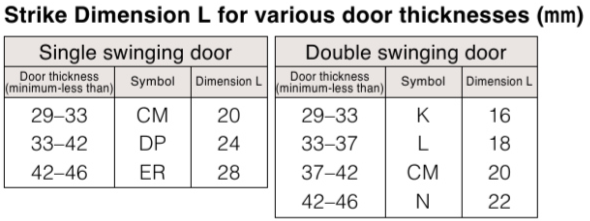

  • Stirike Dimension L for various door thicknesses (mm)

●Single swinging door

Door thickness (minimum-less than) Symbol Dimension L
29-33 CM 20
33-42 DP 24
42-46 ER 28



●Double swinging door
Door thickness (minimum-less than) Symbol Dimension L
29-33 K 16
33-37 L 18
37-42 CM 20
42-46 N 22



You can select the model, door and thickness from the variations.
Please refer to the product images for details of each model.
※The main photo shows the OPJ（Large handle）.

 ※Please note that all instructions included with the actual product are in Japanese.


◆ Product features

●Type ： OPJ（Large handle）,　OPJS（Small handle）

●　Single swing door　or　Double swing door

●　Door thickness ： 29mm to less than 33mm
　　　　　　　　：33mm to less than 42mm
　　　　　　　　：42mm to less than  46mm

●The backset is 64mm.

●A strike plate for single swing doors is included. If you require astrike plate for double swing doors, please contact us separately.

Price may vary depending on options.

 All instructions that come with the actual product are in Japanese.

If you are in a hurry, please confirm the delivery date in advance.

Actual product color may differ slightly from the color in the photo.
Stirike Dimension L for various door thicknesses (mm)
