NITTO KOHKI (Densei) Auto-Hinge Center Hang Type AFD Series, AFD-14H-AX

¥30,855

Sale Sold out

Taxes included. Shipping calculated at checkout.

Type AFD-14HL-AX（Left opening） AFD-14HR-AX（Right opening）

Quantity

NITTO KOHKI (DENSEI) Auto-Hinge Center Hang Type AFD Series, AFD-14H-AX

Model Number
AFD-14HR-AX	Right-hand opening
AFD-14HL-AX	Left-hand opening

You can select the model and color from the variations.
Please refer to the product images for details of each model.

※Please note that all instructions included with the actual product are in Japanese.

◆ Product features

・Compatible doors : Steel door

・Max. Door Opening Angle : 180° Left or Right One-side Opening

・Applicable door size
　Width (W) : 1400mm or less
　Height (H) : 2100mm or less
　Thickness (D) : 40mm or more
　Applicable door weight : 130kg or less

・Closing Force (Nm) : 19.7Newton meters or less

・Spring Set System : Roll-in system

・Indication Label :
　R : Red
　L : White

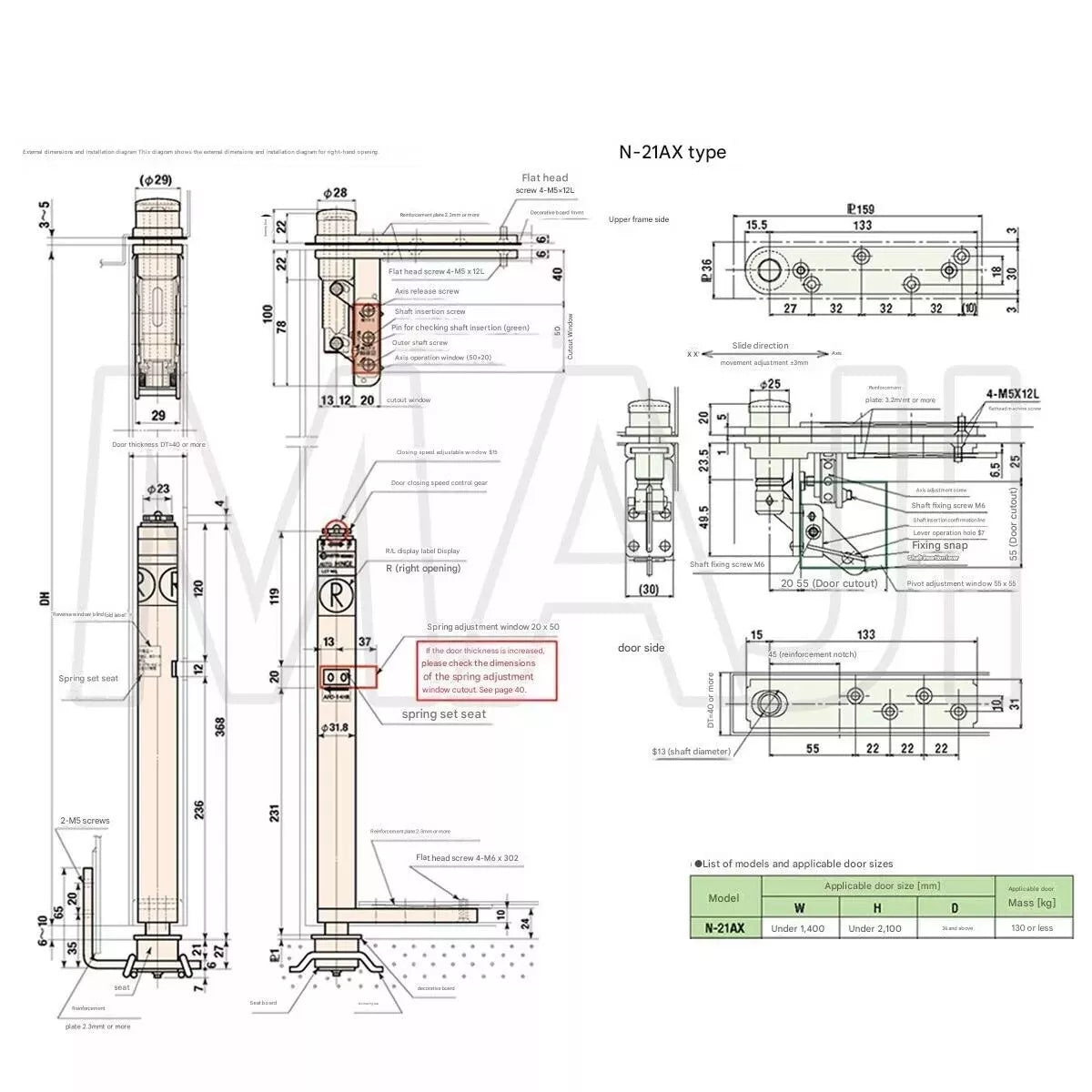

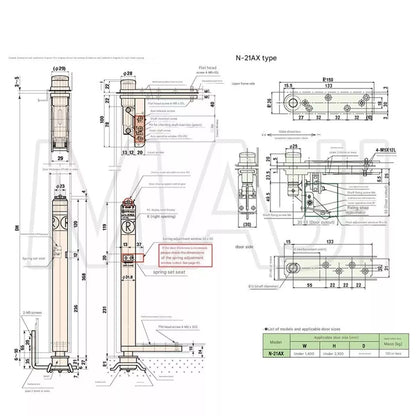

・Top Pivot : N-21AX with shaft center adjustment

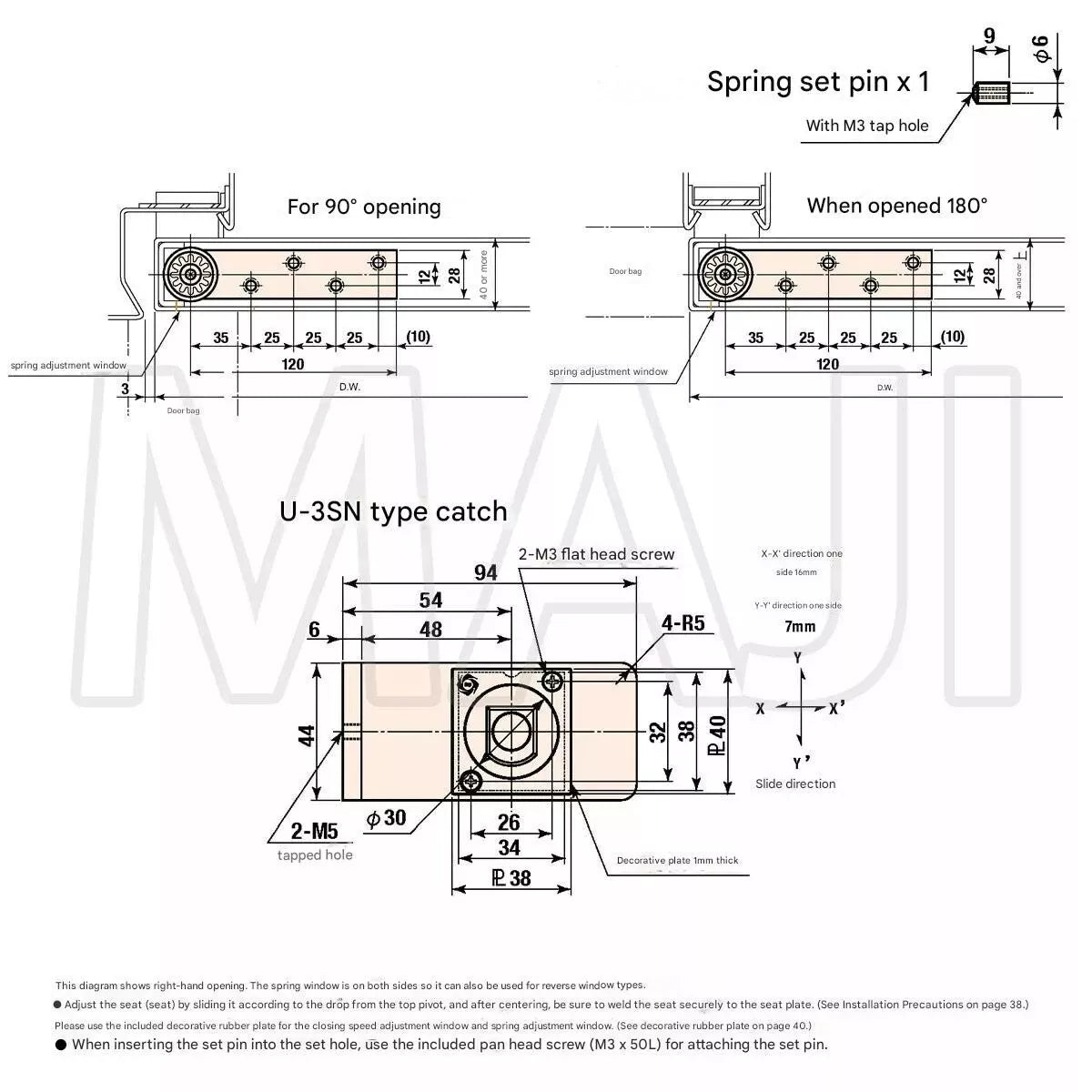

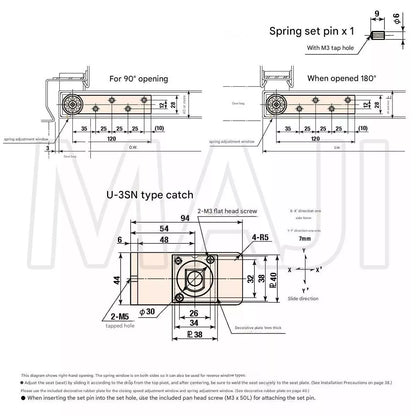

・Receptive Base : U-3SN

Models with "R" at the end of model number are for right hand opening doors, and those with "L" are for left hand opening doors.
Each model consists of a main hinge, Receptive Base, Top Pivot and Decorative Rubber Plates.
Stop mechanism is not applicable.
Select a suitable model by referring to [Table of Applicable Door Size] as shown below.
Fixed type (floor type) Receptive Base is available as option for places where the Sliding Receptive Base is not applicable.
