NITTO KOHKI

NITTO KOHKI (Densei) Auto-Hinge Center Hang Type AFD Series, AFD-22-M

¥41,910

Sale Sold out

Taxes included. Shipping calculated at checkout.

Type AFD-22L-M（Left opening） AFD-22R-M（Right opening） AFD-22L-P-M（Left opening） AFD-22R-P-M（Right opening）

Quantity

NITTO KOHKI (DENSEI) Auto-Hinge Center Hang Type AFD Series, AFD-22-M

Model Number
AFD-22R-M	Right-hand opening
AFD-22L-M	Left-hand opening
AFD-22R-P-M	Right-hand opening
AFD-22L-P-M	Left-hand opening

You can select the model and color from the variations.
Please refer to the product images for details of each model.

※Please note that all instructions included with the actual product are in Japanese.

◆ Product features

・Compatible doors : Steel door

・Max. Door Opening Angle : 180° Left or Right One-side Opening

・Applicable door size
　Width (W) : 2200mm or less
　Height (H) : 2400mm or less
　Thickness (D) : 50mm or more
　Applicable door weight : 240kg or less

・Closing Force (Nm) : 49.1

・Spring Set System : Roll-in system

・Indication Label :
　R : Red
　L : White

・Top Pivot : NKOS-M18

・Receptive Base : U-6SN

Models with "R" at the end of model number are for right hand opening doors, and those with "L" are for left hand opening doors.

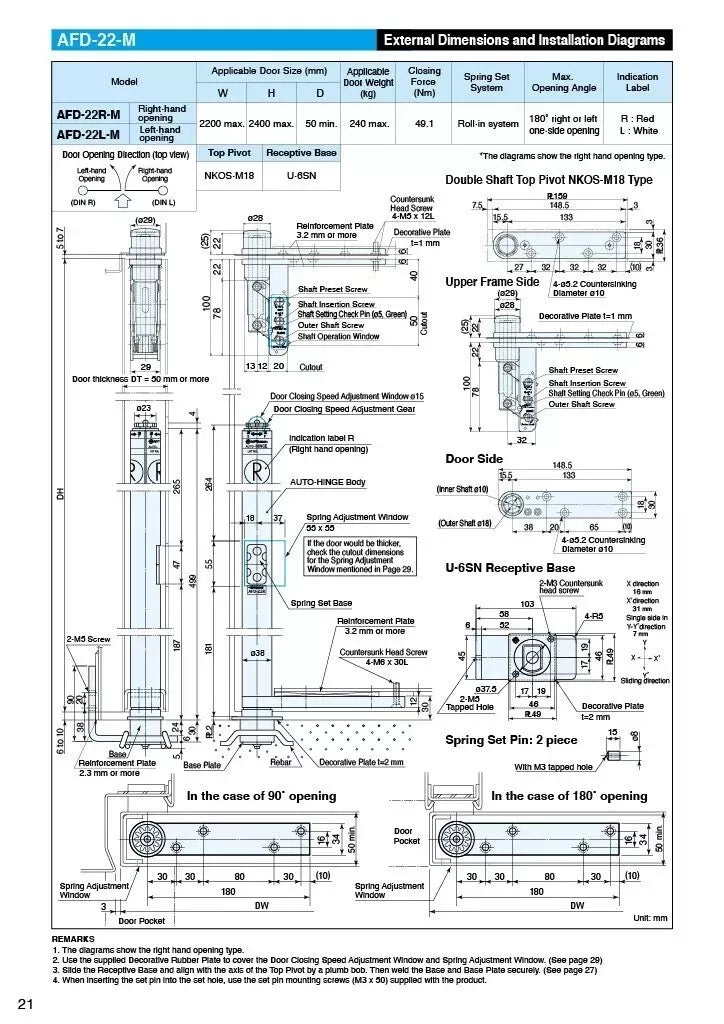

Each model consists of a main hinge, Receptive Base, Top Pivot and Decorative Rubber Plates.
Stop mechanism is not applicable.

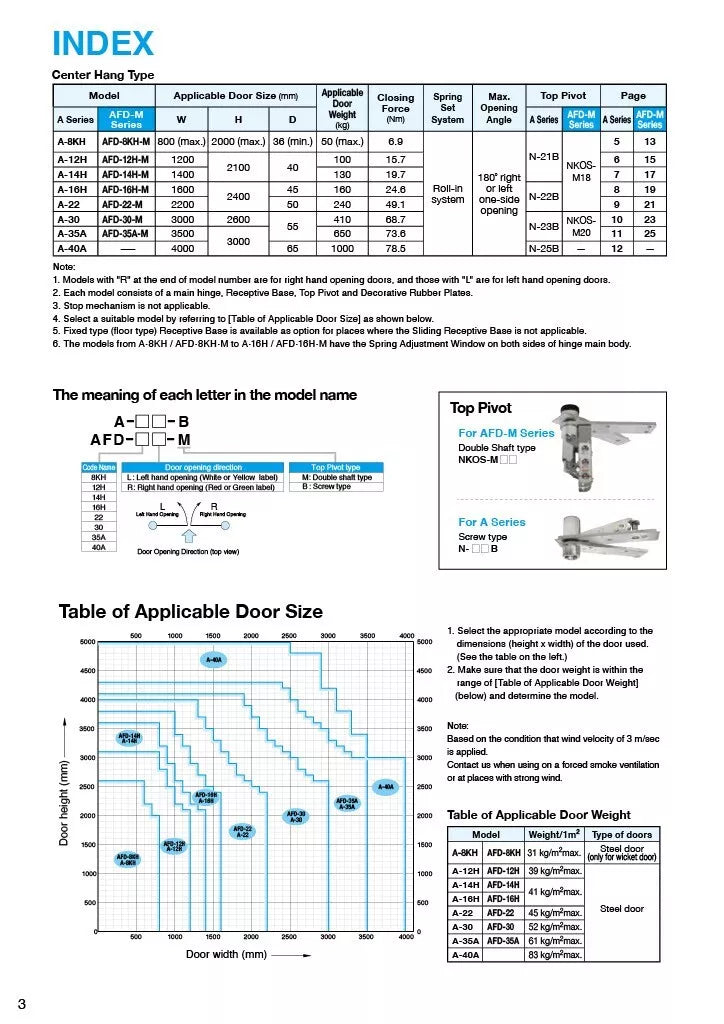

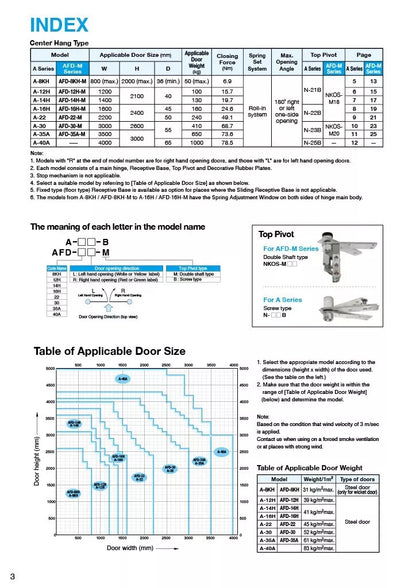

Select a suitable model by referring to [Table of Applicable Door Size] as shown below.
Fixed type (floor type) Receptive Base is available as option for places where the Sliding Receptive Base is not applicable.
The models from A-8KH / AFD-8KH-M to A-16H / AFD-16H-M have the Spring Adjustment Window on both sides of hinge main body.

◆ Installation procedure

This video shows the installation procedure of AUTO-HINGE Center Hang Type.
https://www.youtube.com/watch?v=FiLPvsWQ9KI
