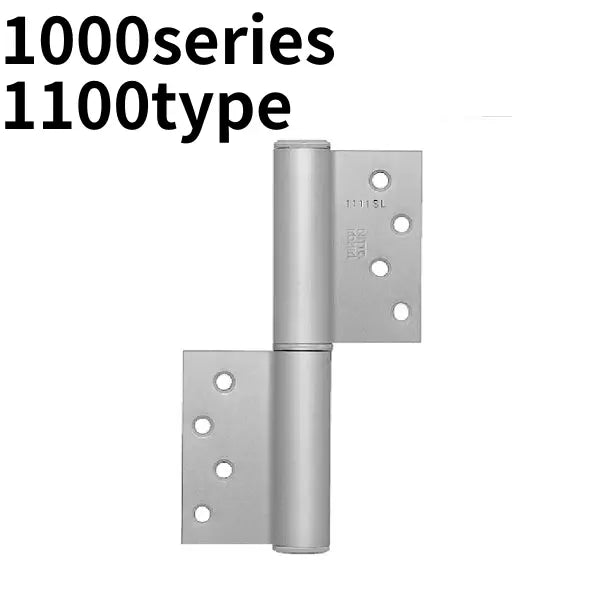

NITTO KOHKI (DENSEI) Auto-Hinge Flag Type 1000series Model 1100

NITTO KOHKI (DENSEI) Auto hinge hinge type 1000 series 1100

Model Number	Color	Function
1111R, 1111L	Silver	Without stop
1111SR, 1111SL	Silver	With stop(85°)
1121R, 1121L	Bronze	Without stop
1121SR, 1121SL	Bronze	With stop(85°)
1111FR, 1111FL	Silver	Free Stop
1121FR, 1121FL	Bronze	Free Stop
1110R, 1110L	Silver	Empty hinge

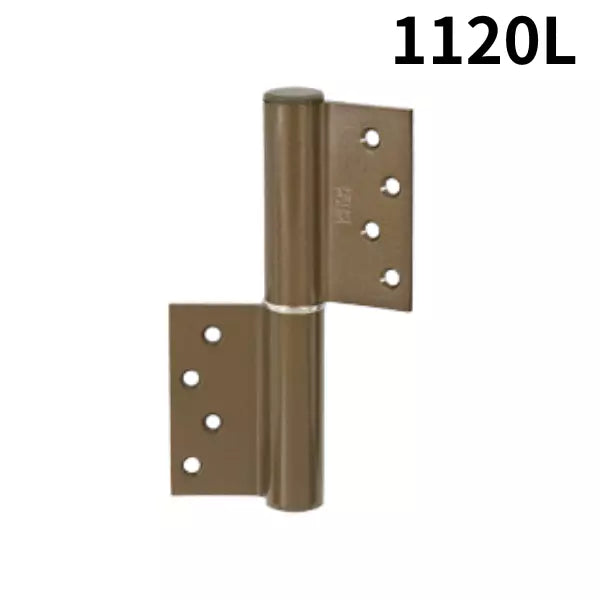

1120R, 1120L	Bronze	Empty hinge

You can select the model and color from the variations.
Please refer to the product images for details of each model.

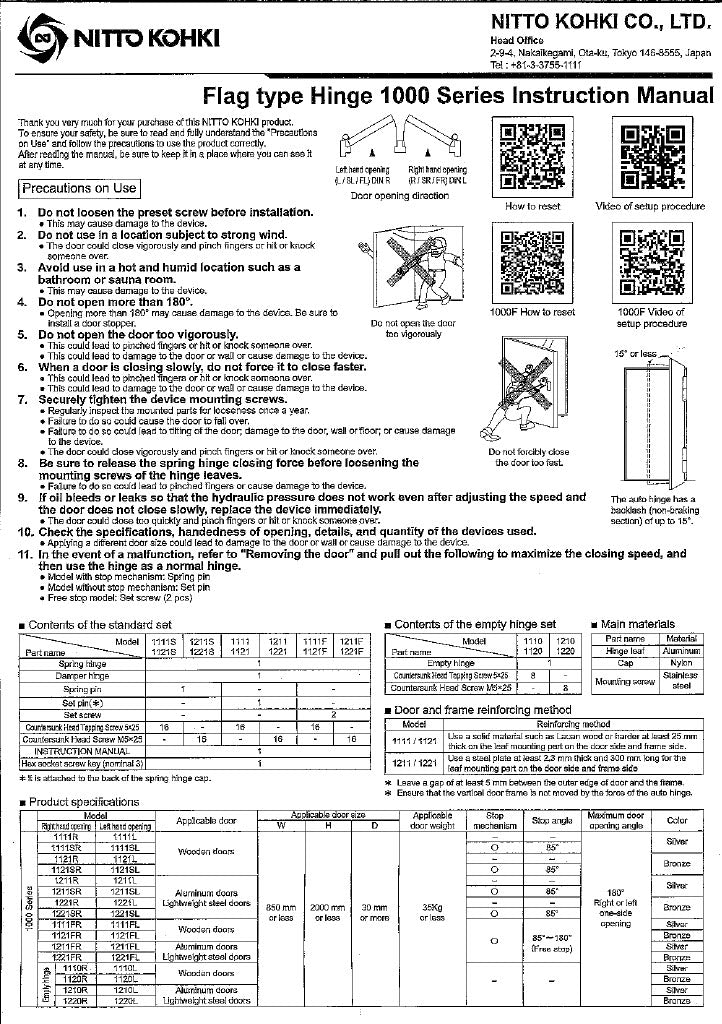

※Please note that all instructions included with the actual product are in Japanese.

◆ Product features

・For indoor use

・Compatible doors : Wooden, Aluminum, Lightweight steel doors

・Color: Silver, Bronze

・Max. Door Opening Angle : 180° Left or Right One-side Opening

・Applicable door size
　Width (W) : 850mm or less
　Height (H) : 2000mm or less
　Thickness (D) : 30mm or more
　Applicable door weight : 35kg or less

・Models with "FR" or "FL" at the end of their model number have the "Free Stop" function.

・Each model consists of a spring hinge and a damper hinge.

・Empty Hinge consists of a empty hinge only.

◆ Installation procedure

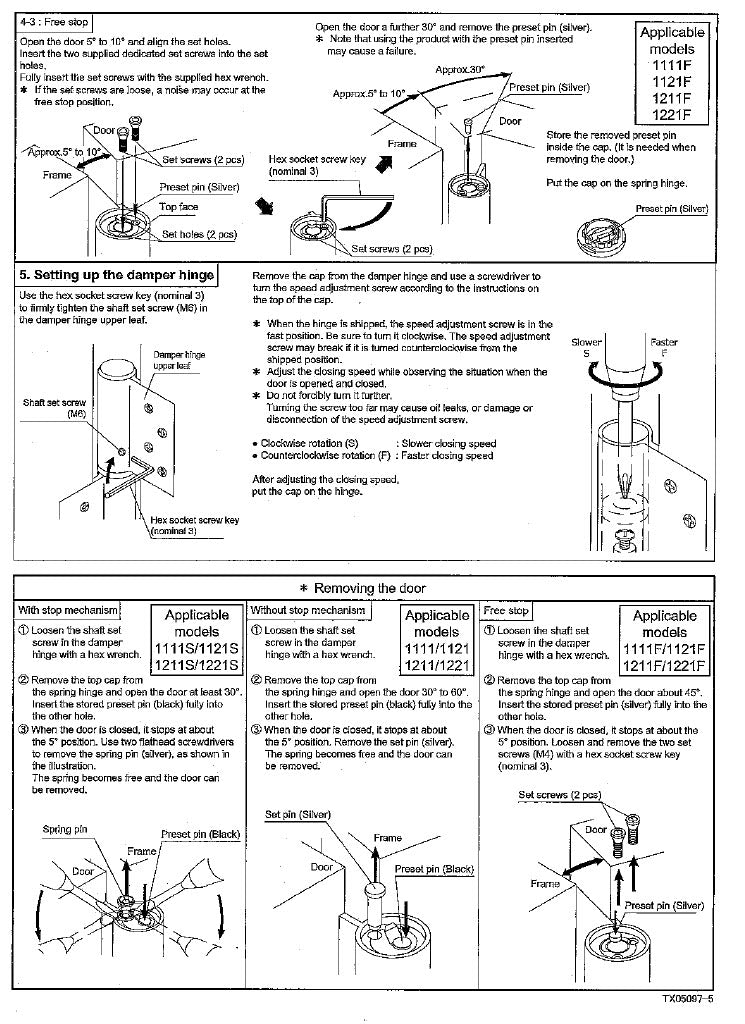

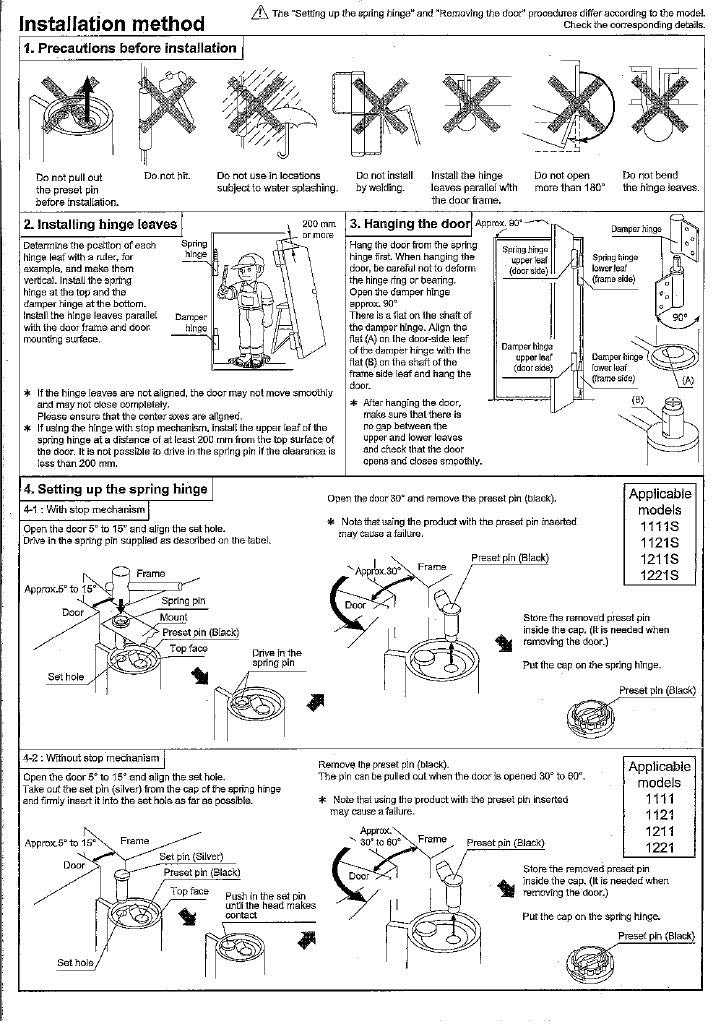

This video shows the installation procedure of AUTO-HINGE Flag Type 1000 series.
https://www.youtube.com/watch?v=b4EUbubdHQw

◆ Price & Shipping

・Price may vary depending on options.

・Handling time is usually around 10 business days.

・It may take a considerable number of days (approximately 3 weeks or more) for shipment due to stock-outs and other reasons. In such cases, we will contact you shortly.

・If delivery takes longer due to stock-out, etc., we will contact you after you place an order.

・The item will be shipped via EMS with a tracking number, so you can always track the delivery status.

・Please be careful not to make any mistakes in your address.

・Shipping is available from Monday to Friday.

・We do not mark merchandise values below value or mark items as "gifts" – Japan, US, and international government regulations prohibit such behavior.

・If your address is in a remote area as defined by the freight (shipping) company, please pay the additional shipping fees via PayPal.
