NITTO KOHKI

NITTO KOHKI (DENSEI) Auto-Hinge Flag Type 100series Model 143T

NITTO KOHKI (DENSEI) Auto-Hinge Flag Type 100series Model 143T

¥3,795
¥3,795
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type

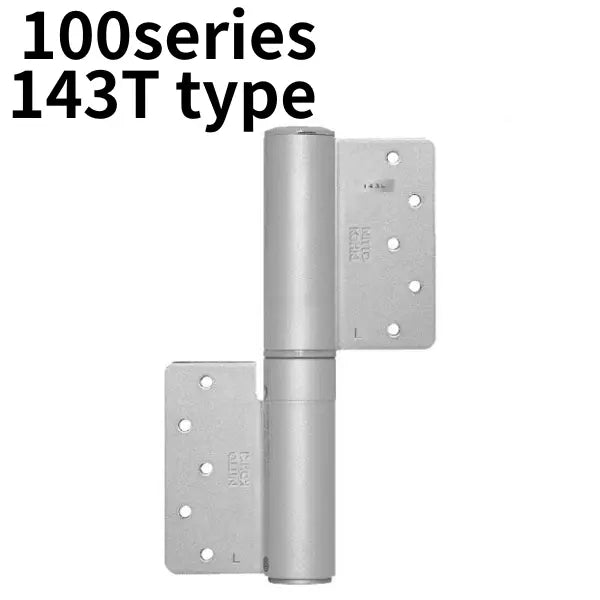

NITTO KOHKI (DENSEI) Auto hinge hinge type 100series Model 143T


Model Number Color Function

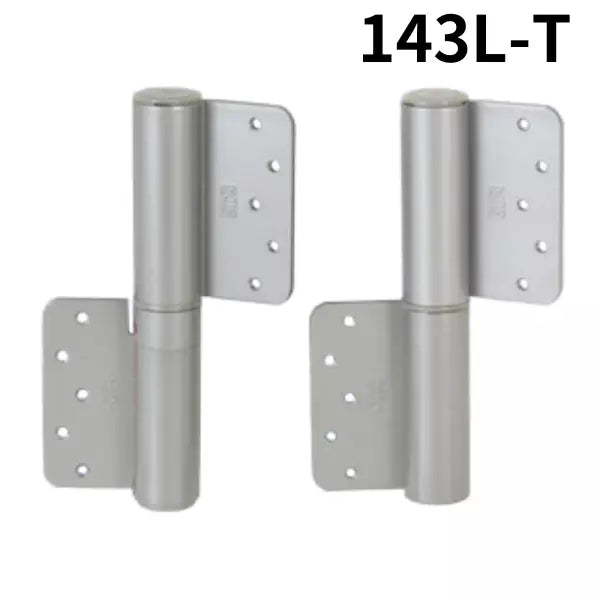

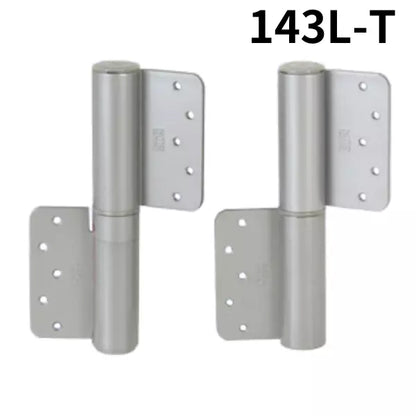

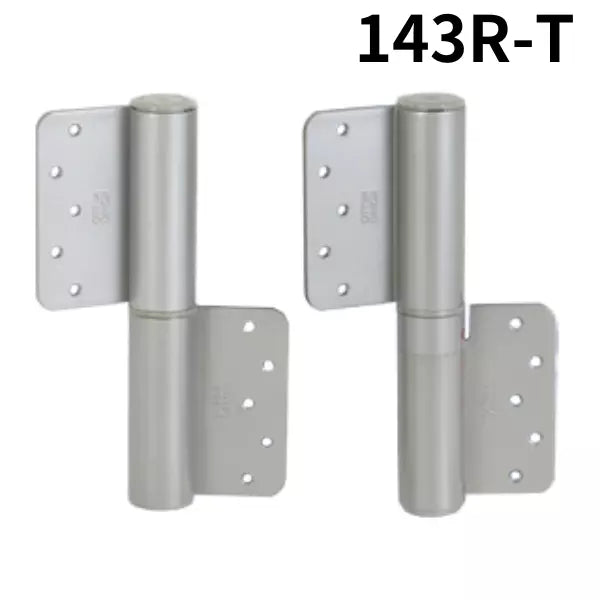

143R-T,143L-T Silver Without stop

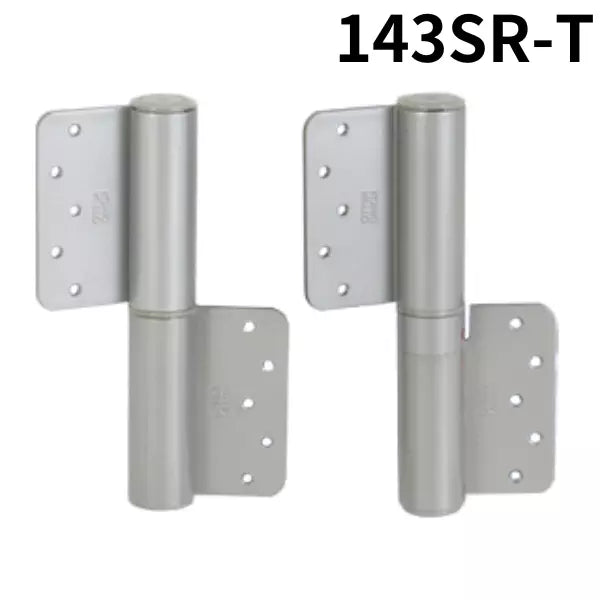

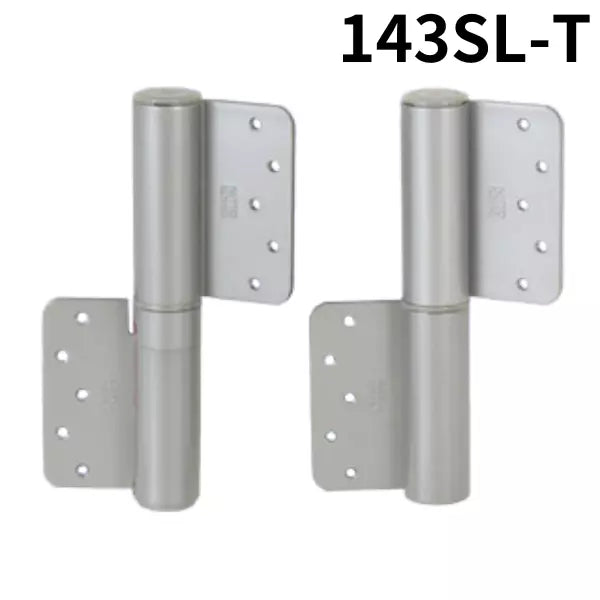

143SR-T, 143SL-T Silver With stop(85° & 150°)

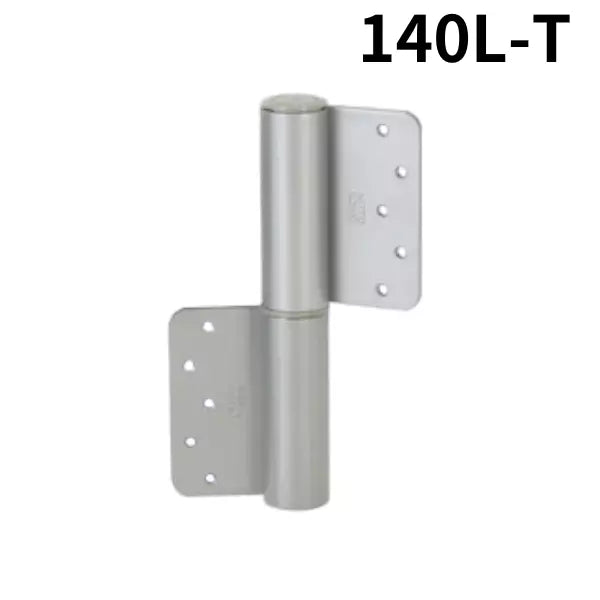

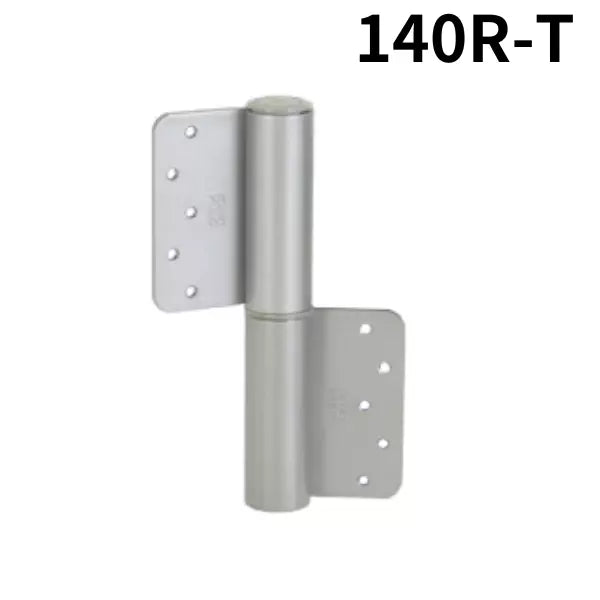

140R-T, 140L-T Silver Empty hinge

You can select the model and color from the variations.

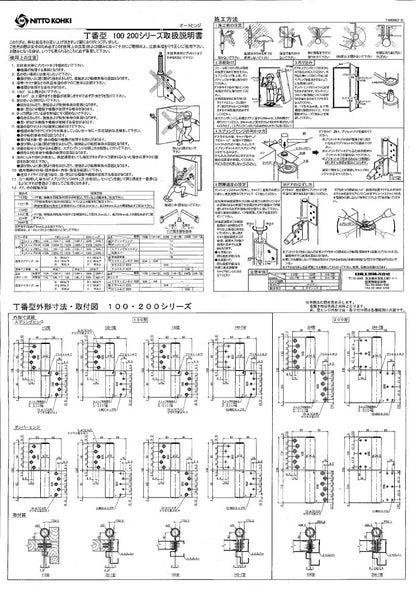

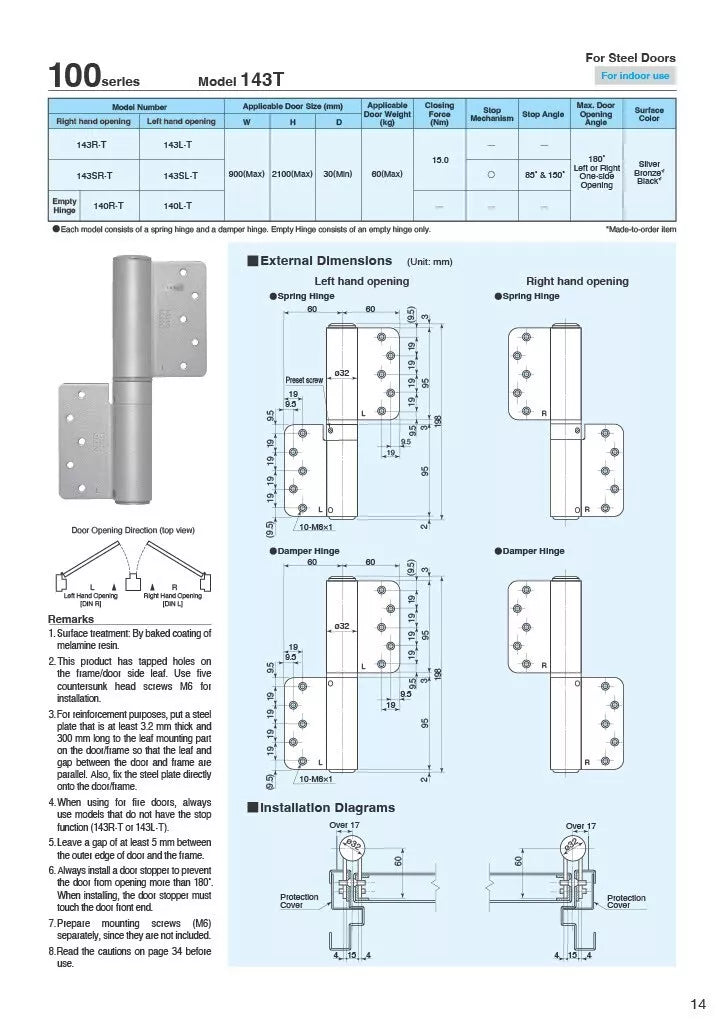

Please refer to the product images for details of each model.

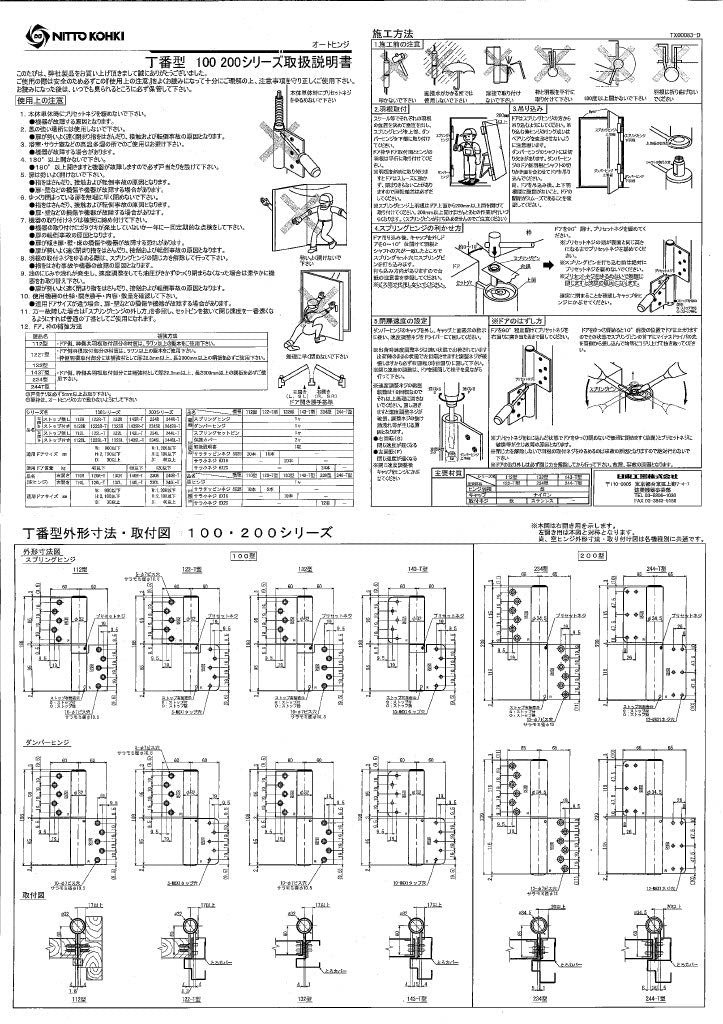

 ※Please note that all instructions included with the actual product are in Japanese.


◆ Product features

・For indoor use

・Compatible doors : Steel doors

・Color: Silver

・Max. Door Opening Angle : 180° Left or Right One-side Opening

・Applicable door size
　Width (W) : 900mm or less
　Height (H) : 2100mm or less
　Thickness (D) : 30mm or more
　Applicable door weight : 60kg or less

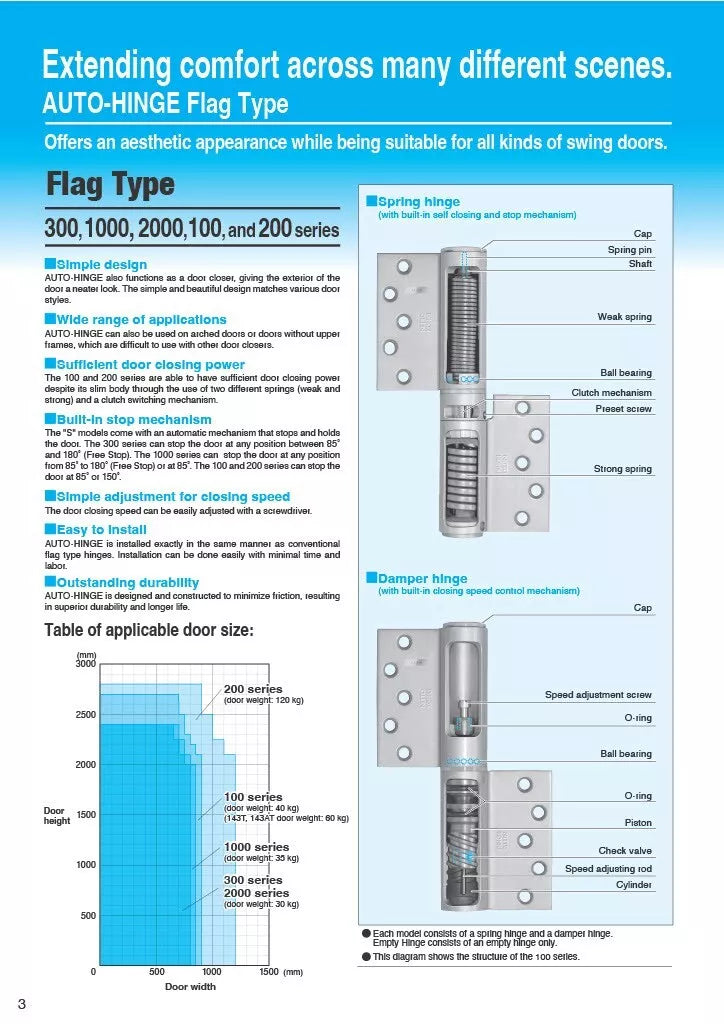

・Each model consists of a spring hinge and a damper hinge.

・Empty Hinge consists of a empty hinge only.

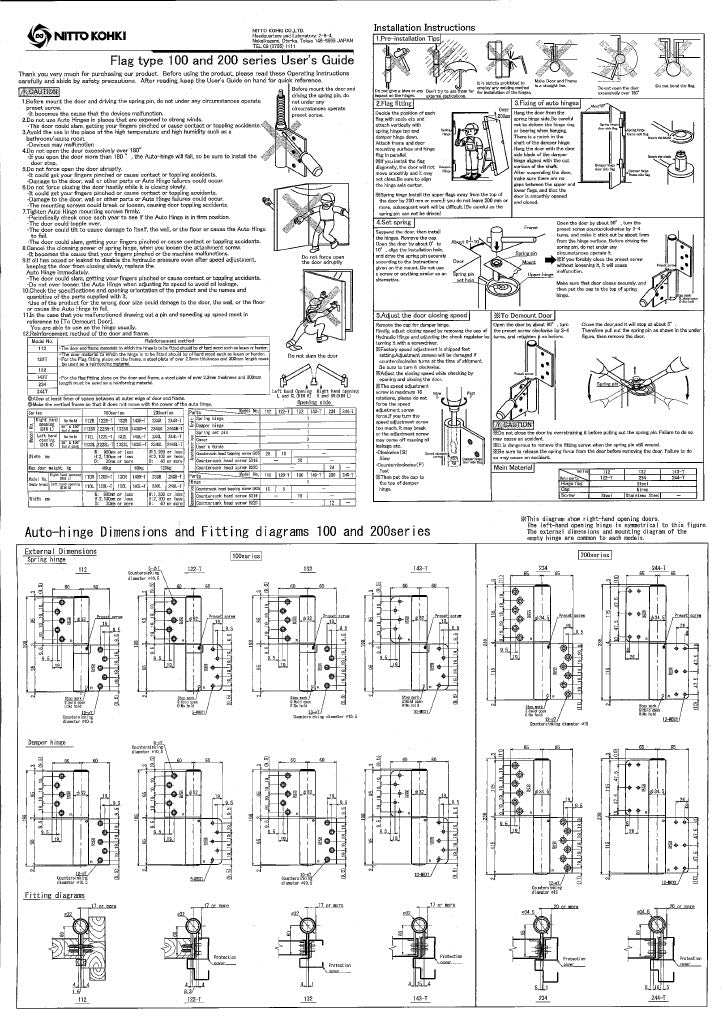

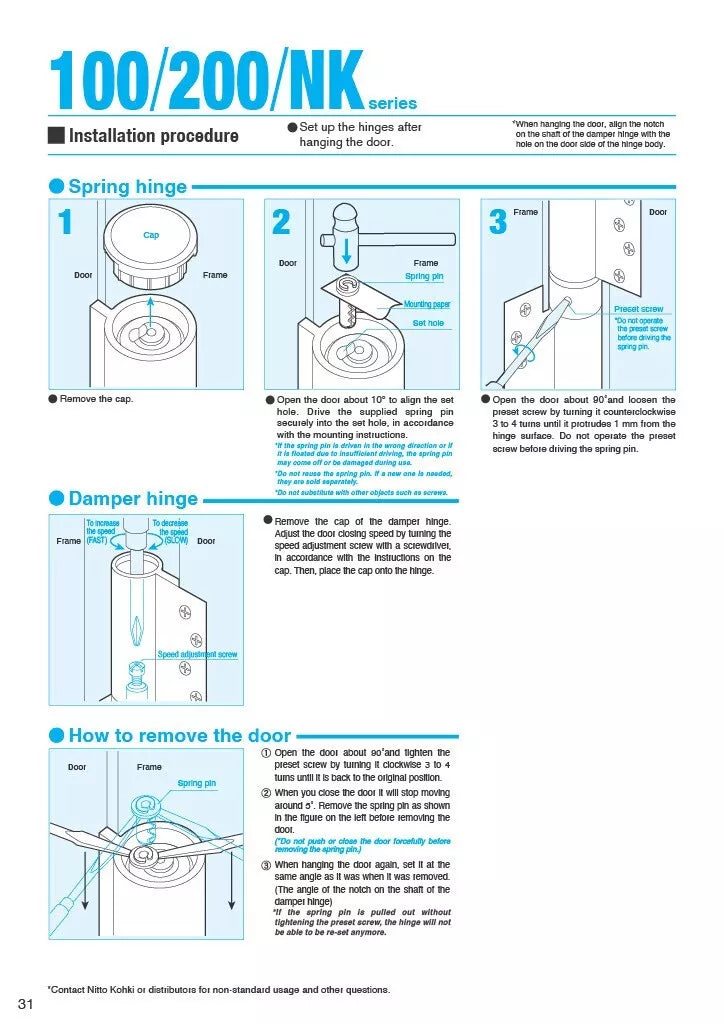

◆ Installation procedure

This video shows the installation procedure of AUTO-HINGE Flag Type 100 series.
https://www.youtube.com/watch?v=b4EUbubdHQw

◆ Price & Shipping

・Price may vary depending on options.

・Handling time is usually around 10 business days.

・It may take a considerable number of days (approximately 3 weeks or more) for shipment due to stock-outs and other reasons. In such cases, we will contact you shortly.

・If delivery takes longer due to stock-out, etc., we will contact you after you place an order.

・The item will be shipped via EMS with a tracking number, so you can always track the delivery status.

・Please be careful not to make any mistakes in your address.

・Shipping is available from Monday to Friday.

・We do not mark merchandise values below value or mark items as "gifts" – Japan, US, and international government regulations prohibit such behavior.

・If your address is in a remote area as defined by the freight (shipping) company, please pay the additional shipping fees via PayPal.

◆ Reference

・Introduction video of the AUTO-HINGE Flag Type
・Installation procedure of AUTO-HINGE Flag Type. (100/200/700 series, 1000 series)
