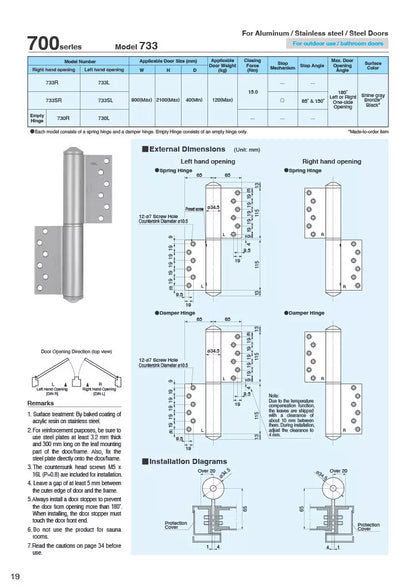

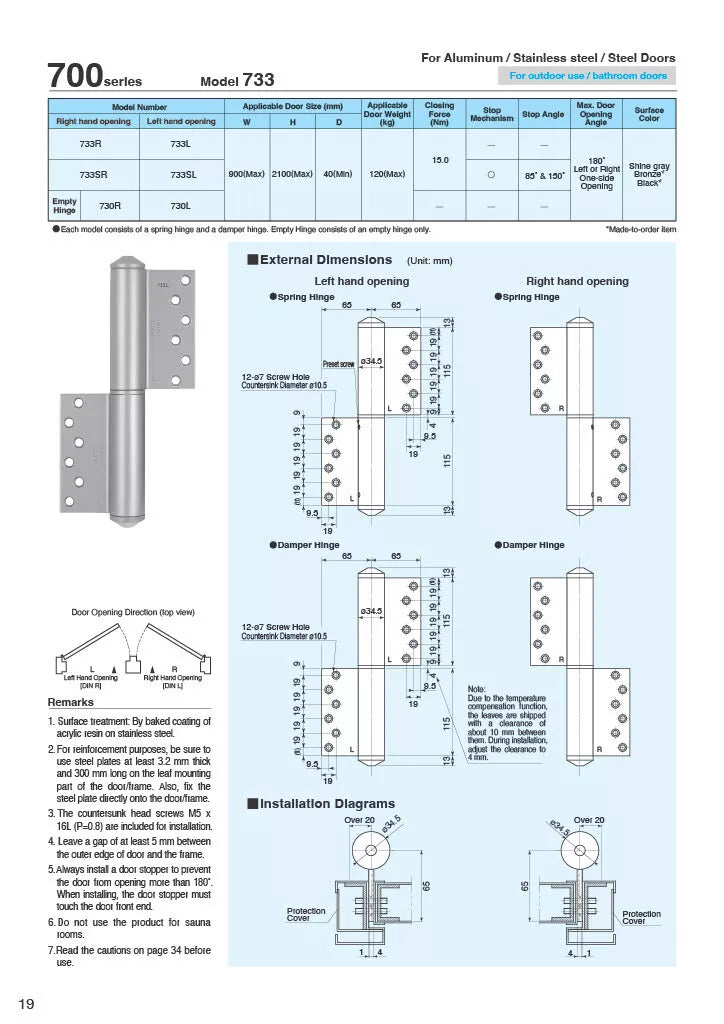

  • NITTO KOHKI 700series 733Type catalog
  • NITTO KOHKI 700series installation procedure
  • NITTO KOHKI 700series detail
  • NITTO KOHKI AUTO-Hinge cautions
  • NITTO KOHKI 700series 730R
  • NITTO KOHKI 700series 733L
  • NITTO KOHKI 700series 733R
  • NITTO KOHKI 700series 733SL
  • NITTO KOHKI 700series 733SR
  • Door Opening Direction
1 12

NITTO KOHKI

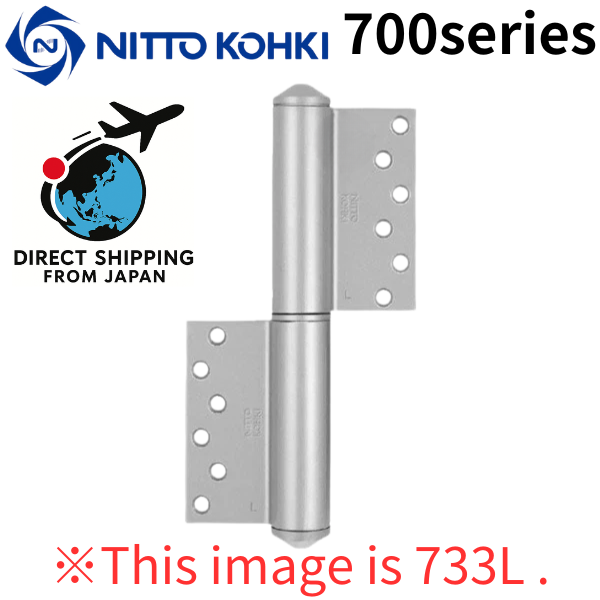

NITTO KOHKI (DENSEI) Auto-Hinge Flag Type 700 series Model 733

NITTO KOHKI (DENSEI) Auto-Hinge Flag Type 700 series Model 733

¥22,110
¥22,110
Sale Sold out
Taxes included. Shipping calculated at checkout.
Type

NITTO KOHKI (DENSEI) Auto hinge hinge type 700 series Model 733


Model Number Color Function
733R, 733L Shine gray Without stop
733SR, 733SL Shine gray With stop(85° & 150°)
730R, 730L Shine gray Empty hinge

You can select the model and color from the variations.
Please refer to the product images for details of each model.

 ※Please note that all instructions included with the actual product are in Japanese.


◆ Product features

・For outdoor use / bathroom doors

・Compatible doors : Aluminum, Stainless steel, Steel doors

・Color: Shine gray

・Max. Door Opening Angle : 180° Left or Right One-side Opening

・Applicable door size
　Width (W) : 900mm or less
　Height (H) : 2100mm or less
　Thickness (D) : 40mm or more
　Applicable door weight : 120kg or less

・Each model consists of a spring hinge and a damper hinge.

・Empty Hinge consists of a empty hinge only.

◆ Installation procedure

This video shows the installation procedure of AUTO-HINGE Flag Type 700 series.
https://www.youtube.com/watch?v=b4EUbubdHQw

◆ Price & Shipping

・Price may vary depending on options.

・Handling time is usually around 10 business days.

・It may take a considerable number of days (approximately 3 weeks or more) for shipment due to stock-outs and other reasons. In such cases, we will contact you shortly.

・If delivery takes longer due to stock-out, etc., we will contact you after you place an order.

・The item will be shipped via EMS with a tracking number, so you can always track the delivery status.

・Please be careful not to make any mistakes in your address.

・Shipping is available from Monday to Friday.

・We do not mark merchandise values below value or mark items as "gifts" – Japan, US, and international government regulations prohibit such behavior.

・If your address is in a remote area as defined by the freight (shipping) company, please pay the additional shipping fees via PayPal.

◆ Reference

・Introduction video of the AUTO-HINGE Flag Type
・Installation procedure of AUTO-HINGE Flag Type. (100/200/700 series, 1000 series)
