MIWA LOCK BAN-DS2 series LINE ELECTRIC LOCK CONTROL BOX

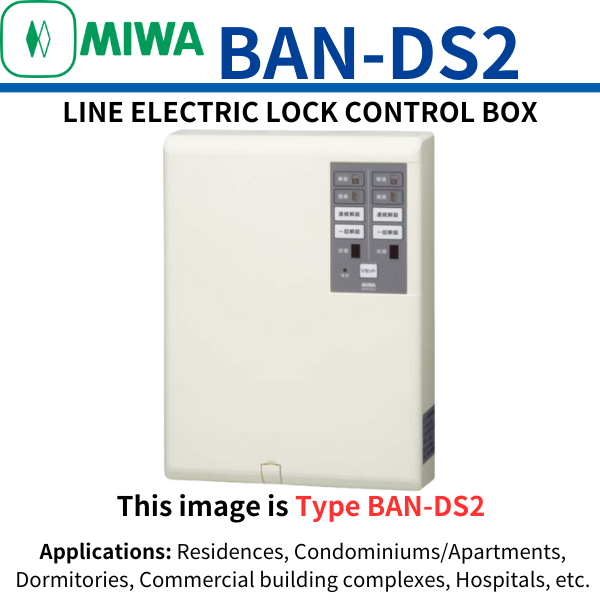

※The main photo shows Type BAN-DS2.

● MIWA (MIWA LOCK) BAN-DS2 2-Line Electric Lock Operation Panel (2 Circuits)

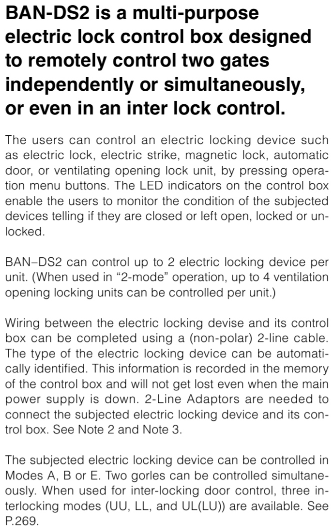

The BAN-DS2 is a two-circuit electric lock operation panel with a 2-wire system. It is a versatile control panel capable of independently controlling two circuits, as well as batch control of both circuits and interlock control.

● MIWA BAN-DS1 2-wire electric lock operation panel (replacement for BAN-BS1)
The power supply comes with a household outlet plug, so there is no need for electrical work as long as the plug is near the operating panel.

● Installation of the electric lock requires a high level of expertise (cutting out the door and installing the lock). It is a difficult task for a person with only Sunday carpentry experience.

● If you are unsure about this, please consult a specialist.

◆ Product features

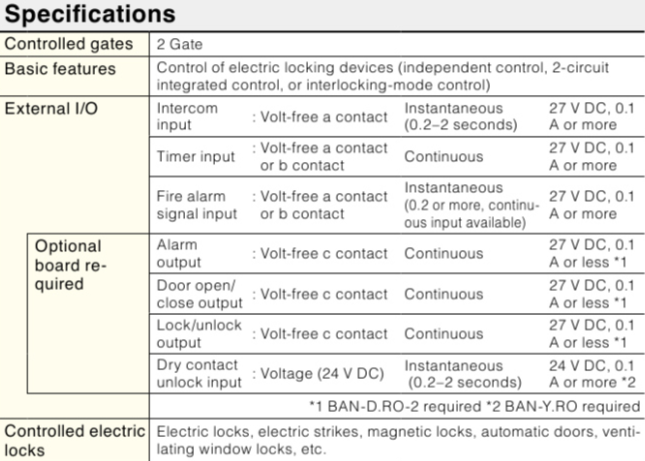

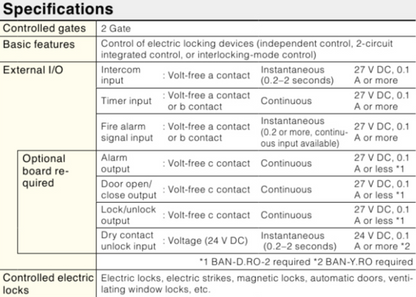

   1. Versatile Operation

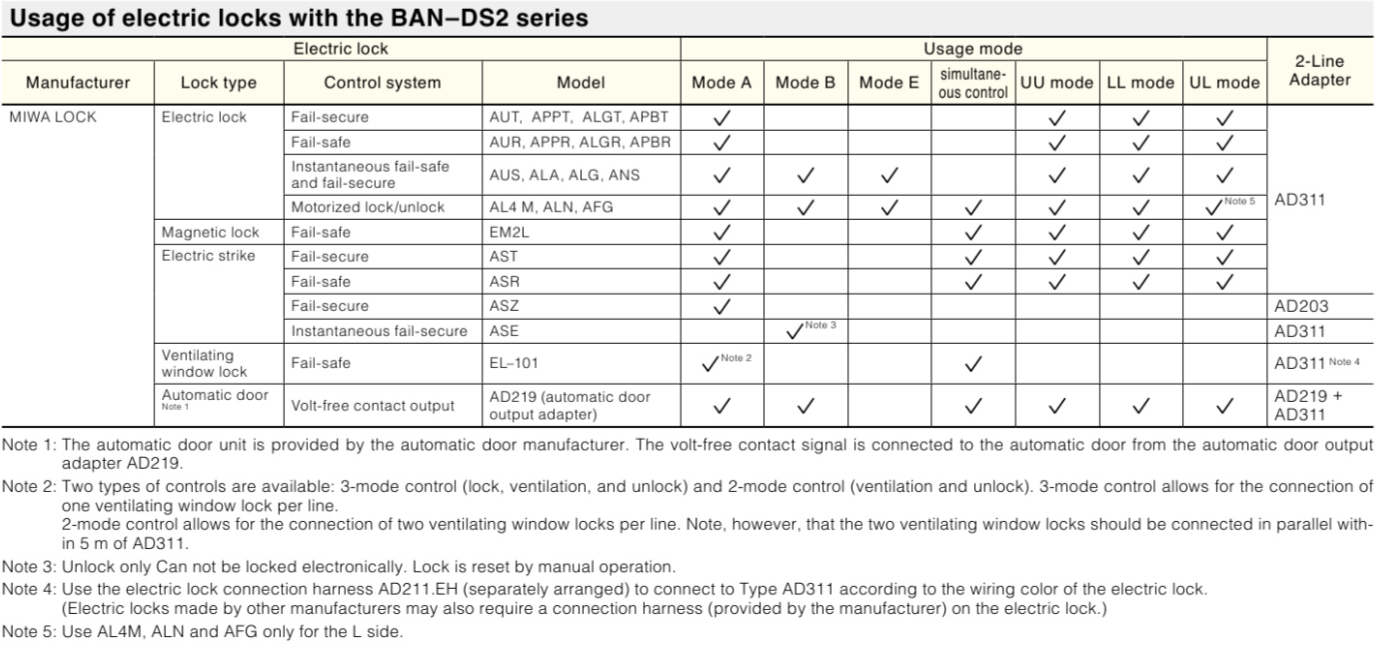

Compatible Devices : Operate electric locks, electric strikes, electromagnetic locks, automatic doors, and air intake locks using the operation buttons.

Status Display : The LED display shows the open/close status and lock/unlock status of the door.

   2. Maximum Controllable Units

　　　A single BAN-DS2 unit can control : Up to 2 electric locks, electric strikes,                                                                                     electromagnetic locks, or automatic doors.

Up to 4 air intake locks (only for 2-mode control).

   3. Simplified Wiring

　　　Wiring between the electric lock and the operation panel requires only two                       wires (non-polarized).

　　　The type of connected electric lock is automatically detected and stored in 　　　  　　　memory (even after the power is turned off).

   4. Control Modes

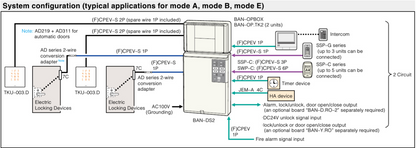

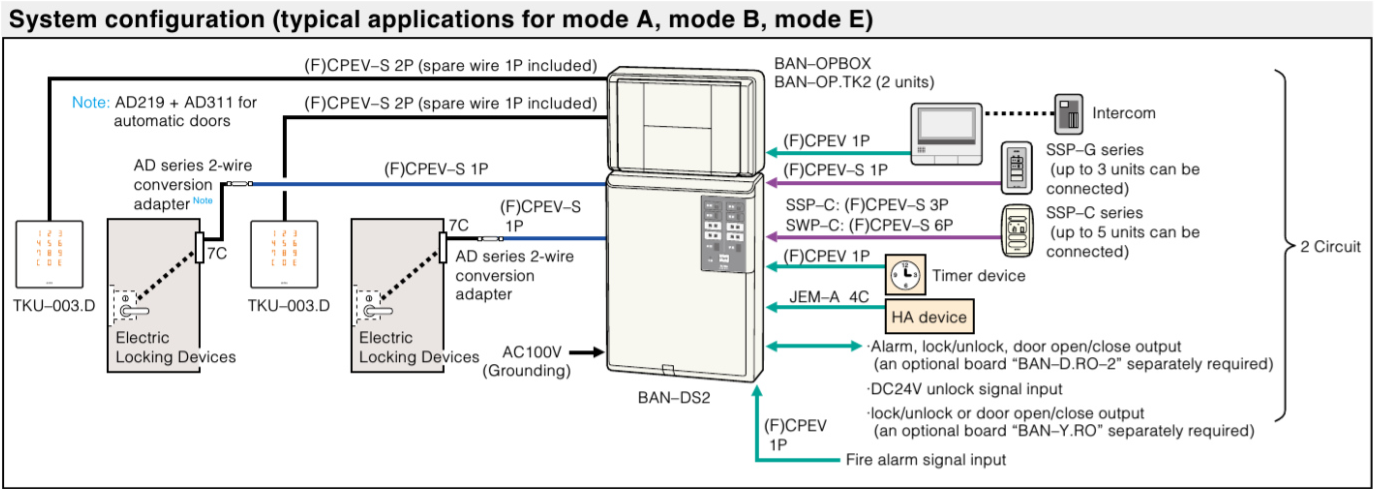

　　　Control modes can be selected from A, B, and E modes.

　　　Batch control of both circuits simultaneously is possible.

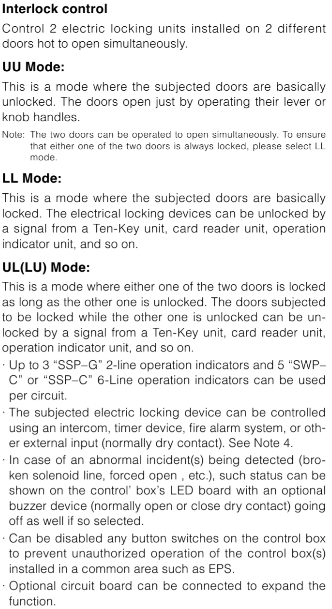

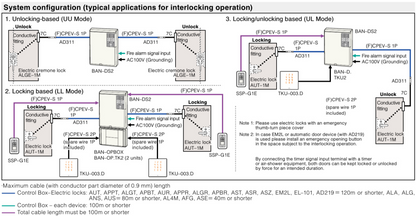

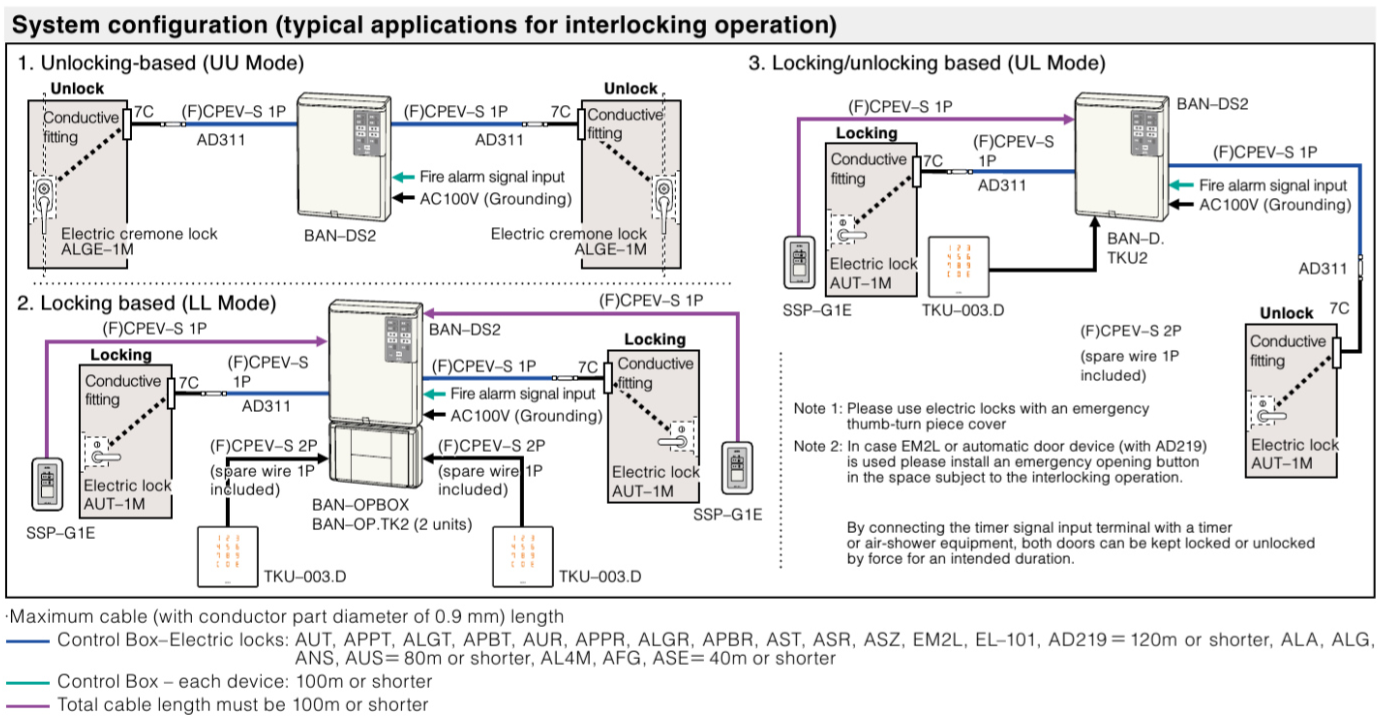

　　　Interlock Control: When set to interlock mode, you can choose from the 　　　  　　　　　　　　　　　following three types of interlock control :

• • UU Mode
  • LL Mode
  • UL (LU) Mode

   5. Electric Lock Connection

　       　A conpatible 2-wire conversion adapter is required for connecting electric                         locks.

◆ Use Cases

           ●Enhanced security for entrances and exits.

           ●Coordinated operation of automatic doors and electric locks.

           ●Managing multiple entry points, including emergency exits and air intake locks.

           ●The BAN-DS2 is a highly functional operation panel designed to meet diverse                   control needs, making it ideal for environments where security is paramount.

◆ Price & Shipping

・It takes about 7~10 business days to ship products, but this may vary. Please understand in advance.

・It may take a considerable number of days (approximately 3 weeks or more) for shipment due to stock-outs and other reasons. In such cases, we will contact you shortly.

・If delivery takes longer due to stock-out, etc., we will contact you after you place an order.

・The item will be shipped via EMS with a tracking number, so you can always track the delivery status.

・Please be careful not to make any mistakes in your address.

・Shipping is available from Monday to Friday.

・We do not mark merchandise values below value or mark items as "gifts" – Japan, US, and international government regulations prohibit such behavior.

・If your address is in a remote area as defined by the freight (shipping) company, please pay the additional shipping fees via PayPal.

◆ Reference

・MIWA LOCK BAN-DS1 series WIRE ELECTRIC LOCK CONTROL BOX
